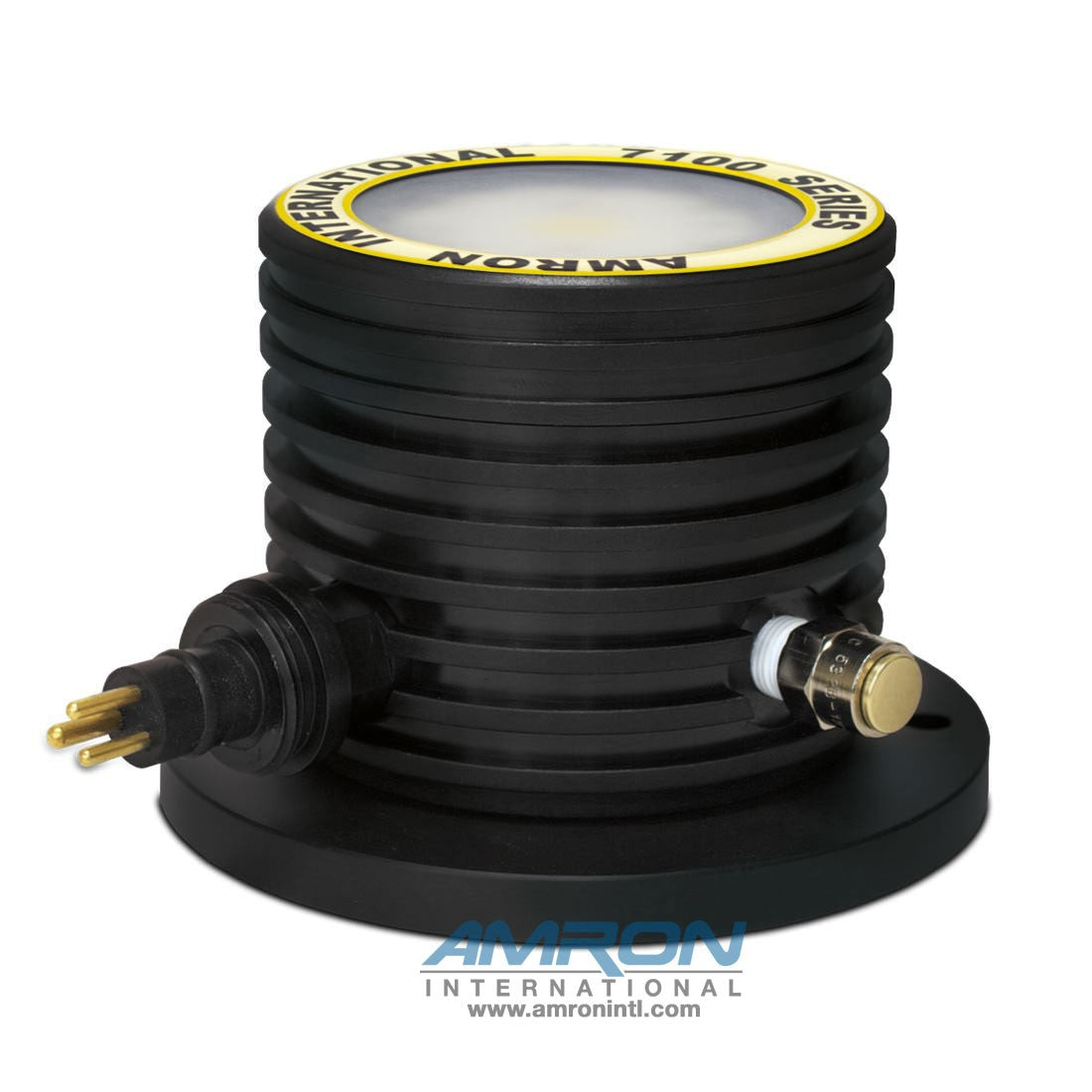

LED Hyperbaric Chamber Light (Frosted)

LED Hyperbaric Chamber Light (Frosted) is a chamber-mounted light for illumination of pressurised chambers. It is intended for hyperbaric chamber use. Power or supply requirement: Low-voltage DC.

• Exclusive 6 level light intensity dimmer touch pad
• Long lasting LED technology with 50,000 hour life
• Low profile design
• Adjustable integrated mounting plate
• 4-pin wiring configuration
• Low heat with high-performance heat sink

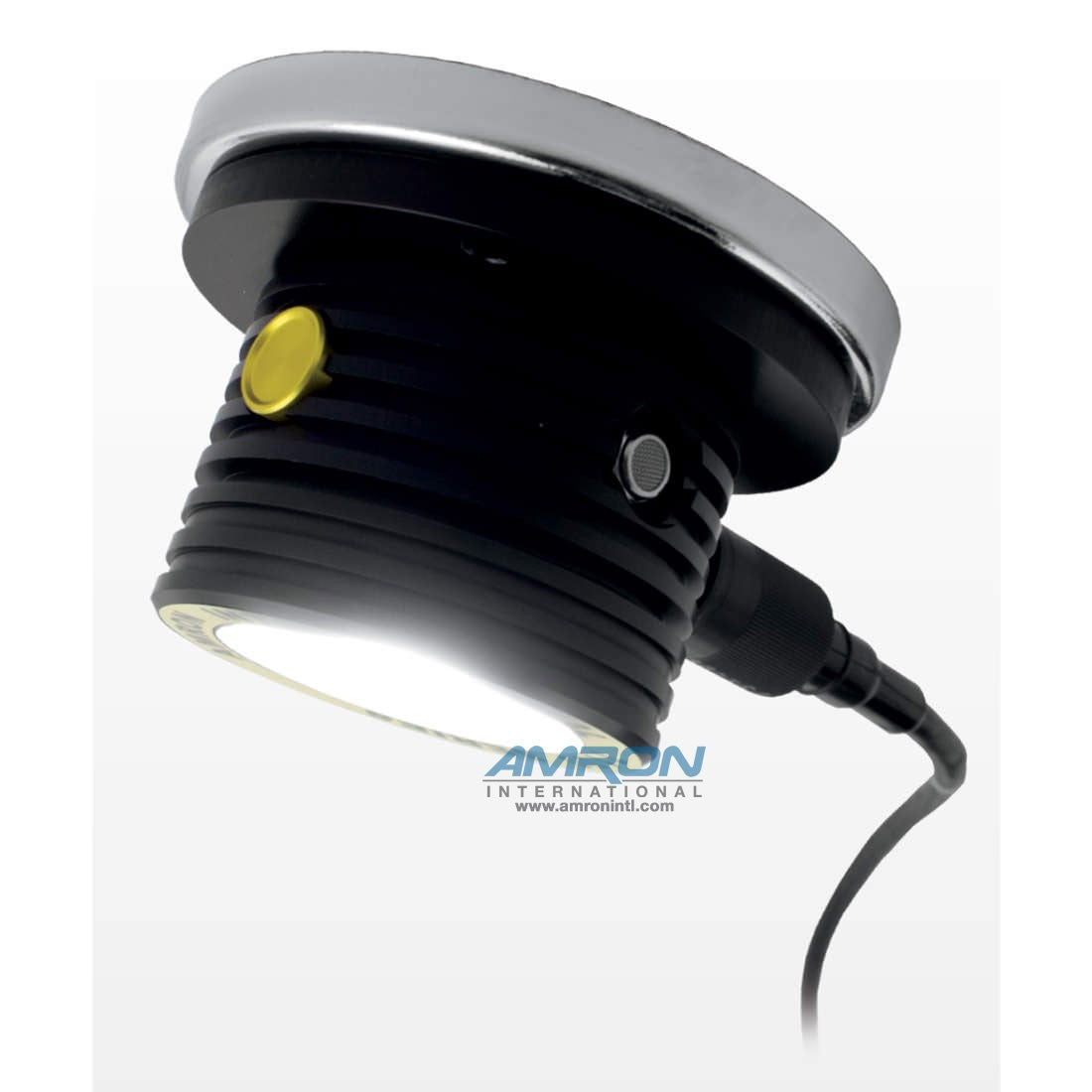

• Optional magnetic base available
• Optional red and blue lens filters

Specifications

• Lamp type: Bright white LED

Electrical Specifications

• Operating Voltage Range: 9-28 VDC
• Input Power: 15 Watts (maximum)
• Beam Angle: 120°
• Light Level: Adjustable up to 1000 lumens
• External Dimmer Control Voltage (7120 only): 0-10 Volts

Mechanical Specifications

• Housing: 6061 Aluminum
• Finish: Black Hard Anodized, MIL-A-8625, type III class 2
• Pressure Rating: 1000 fsw (300 msw)

Mating Connectors

• 7120 - 4-pin Marsh Marine: RMG-4-FS (not included)

Locking Sleeve

• Delrin - Marsh Marine: G-FLS-D (not included)
• Stainless Steel - Marsh Marine: G-FLS-S (not included)

Dimensions

• Height: 2.6 inches (67 mm)
• Body Diameter: 3.3 inches (84 mm)
• Mounting Plate: 4.5 inches (114 mm)
• Weight: 1.50 lbs (0.68 kg)
